Auto Line for Shape Glass Cutting Machine

Basic Info

Model NO.	CNC-4228
Glass Thickness	2-19mm
Dimensions (L*W*H)	20000*3000*1300mm
Max. Cutting Speed	160m/Min
Air Pressure	0.6~0.8MPa
CNC System	Galil (USA)
Optimization Software	Optima (Italy)
Servo Motor	Yaskawa (Japan)
Pneumatic Parts	Airtac (Taiwan)
Low Voltage Electric Parts	Schneider (France)
Transport Package	Sea Worthy Package
Specification	CE
Trademark	Glasino
Origin	Shandong Jinan
HS Code	84649011
Production Capacity	30sets/Month

Product Description

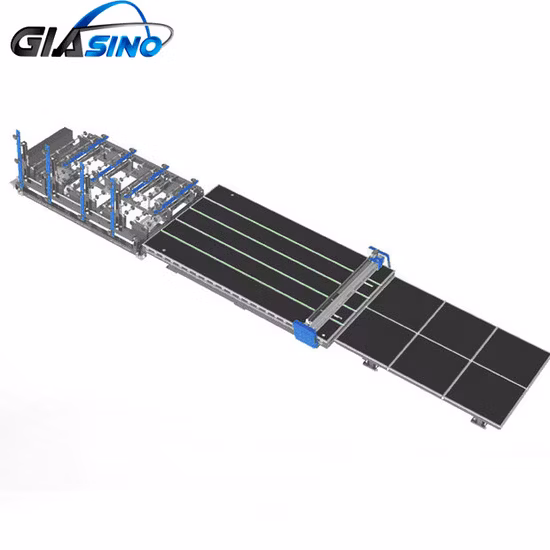

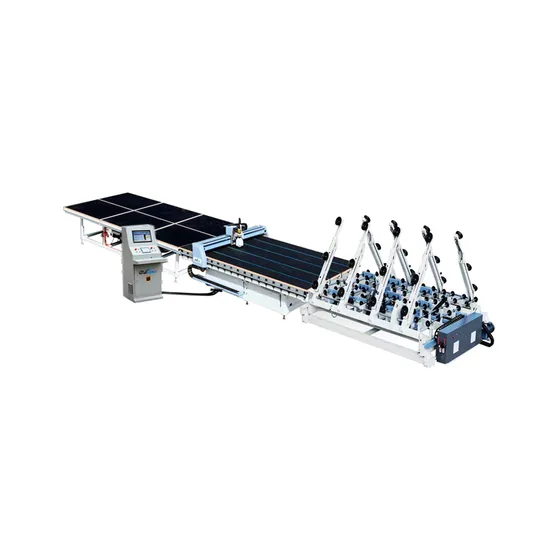

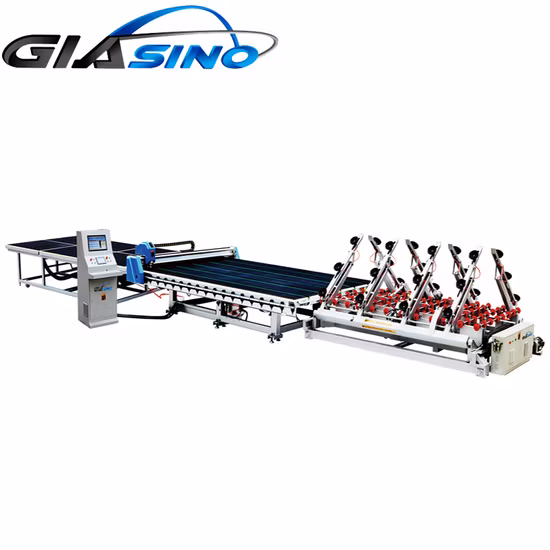

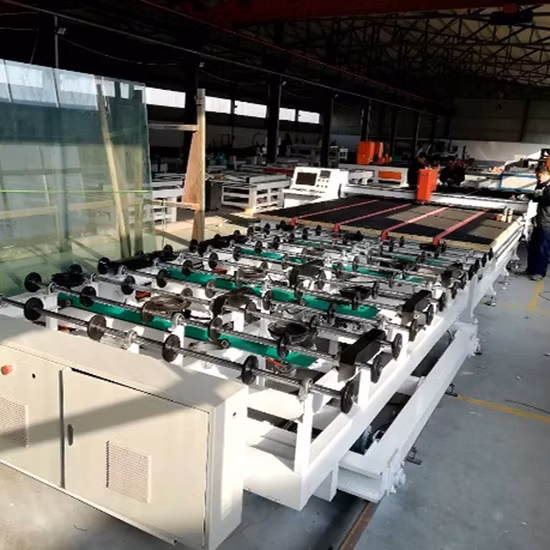

GS-CNC-4228 Automatic Glass Cutting Line

The line mainly contains three sections:
1. XC-SP-2620 Automatic Glass Loading Machine
2. XC-CNC-2620 Automatic Shaped Glass Cutting Machine
3. XC-QP-2620 Glass Breaking Table


1. XC-SP-2620 Automatic Glass Loading Machine

Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- High quality vacuum system, fast sucking speed and high stability
- One key original reset function, for improving work efficiency
- Trouble alarm system and safety alarm system
- Four-bar linkage glass lift structure
- High density PU material glass convey wheel
- Acrylonitrile-butadiene rubber suck disc
- 40CBM/hour vacuum pump
- Enclosed wire and air pipe set

Main parts list:
PLC: Omron (Japan)
Touch screen: MCGS
Converter: Teco (Taiwan)
Sensor: Omron (Japan)

Technical introduction:
- Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm
- Chain convey after glass suck
- Both auto and manual modes
- Auto alarm system and emergency button for make sure safety operation
- English language touch screen operation
- Glass sheet quantity and station position auto set
- Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table

Technical parameter:

Model	Max. glass size	Thickness	Dimensions (L*W*H)	Power	Air pressure
SP-2620	2600*2000mm	2~19mm	3560*2200*900mm	8KW	0.6~0.8MPa
SP -4228	4200*2800mm	3~19mm	5000*2850*900mm	8KW	0.6~0.8MPa
SP -5133	5100*3300mm	3~19mm	5400*3000*900mm	8KW	0.6~0.8MPa
SP -6133	6100*3300mm	3~19mm	6430*3340*900mm	8KW	0.6~0.8MPa

2. XC-CNC-2620 Automatic Glass Cutting Machine
Mechanical characteristic:
- Mn bridge steel (Q345A ), perfect surface treatment
- Perfect machine body structure makes sure the tale flat enough and no out of shape
- Japan SMC valve controls the cutting pressure according to different thickness glass
- Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections
- High density water-proof table
- Imported felt, high flatness, antistatic
- 3D edge searing system, high precision automatic location function
- Automatic lubrication system, work in step with cutter head
- Air float function and belt transmit
- Linear guide rail makes sure the high cutting precision and low noise

Main mechanical parts:
Table panel: high density water proof panel (flatness≤±0.20mm/m)
Rack and rail: KHK Japan
Guide rail: Hiwin Taiwan
Belt: Maiku (Joint venture)
Cutter wheel and cutter holder: Bolhe Germany

Main electric parts:
CNC System: Galil (USA)
Optimization software: Optima (Italy)/Guiyou (China best brand)
Servo motor: YASKAWA (Japan)
Pneumatic parts: Airtec (Taiwan)
Low voltage electric parts: Schneider (France)
Cutting pressure valve: SMC (Japan)

Technical parameter:

Model	Max. glass size	Thickness	Dimensions (L*W*H)	Max. speed	Air pressure
CNC-1512	1500*1200mm	2~19mm	2480*2240*1275mm	150m/min	0.6~0.8MPa
CNC-2620	2600*2000mm	2~19mm	3560*2912*1300mm	150m/min	0.6~0.8MPa
CNC-4228	4200*2800mm	3~19mm	5320*3100*1300mm	160m/min	0.6~0.8MPa
CNC-5133	5100*3300mm	3~19mm	6150*4212*1300mm	160m/min	0.6~0.8MPa
CNC-6133	6100*3300mm	3~19mm	7150*4212*1300mm	160m/min	0.6~0.8MPa

3. XC-QP-2620 Glass Breaking Table
Mechanical characteristic:
- Air float function
- Breaking bars 1+2
- High density water-proof table
- Imported felt, high flatness, antistatic
- Breaking bars foot switch control
- Partial design for standard container load

CNC GLASS CUTTING LINE PARAMETER TABLE SHEET:

Model	Max. glass size	Thickness	Dimensions (L*W*H)	Max. speed	Air pressure
CNC-2620	2600*2000mm	2~19mm	11000*3000*1300mm	150m/min	0.6~0.8MPa
CNC-4228	4200*2800mm	3~19mm	14500*3600*1300mm	160m/min	0.6~0.8MPa
CNC-5133	5100*3300mm	3~19mm	17000*4212*1300mm	160m/min	0.6~0.8MPa
CNC-6133	6100*3300mm	3~19mm	19980*4212*1300mm	160m/min	0.6~0.8MPa
