Automatic Vertical Dgu Two Component Hot Melt Gluing Double Glazed Unit Window and Door Insulating Glass Silicone Mixed Sealant Secondary Sealing Robot Machine

Basic Info

Model NO.	ZDJ-V25
After-sales Service	12 Months for Free, Lifetime Warranty
Name	Automatic Glass Sealing Machine
Application	Insulating Glass Production Line
Use	Glass Machinery
Model	Zdj-V25
Max. Sealing Size	3600*2500mm
Sealing Speed	5-35m/Min
Min. Processing Size	350*200mm
Power Supply	380V/50Hz
Total Power	10kw
Glue Supply Pressure	<30MPa
Elevation	400mm
Air Pressure	0.6-0.8MPa
Max Weight of Ig Unit	800kgs
Material	Silicone Sealant, White Glue, Black Glue
Automatic	PLC Control
Transport Package	Nude Package
Specification	14000*3500*3200mm
Trademark	BOKE
Origin	China
HS Code	8464901900
Production Capacity	1000 Square Meters

Product Description

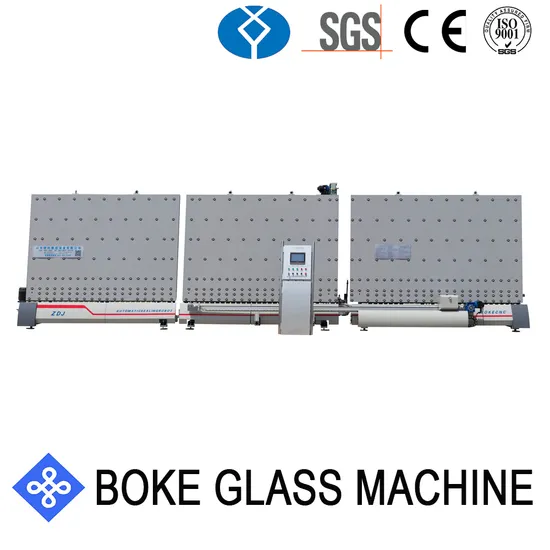

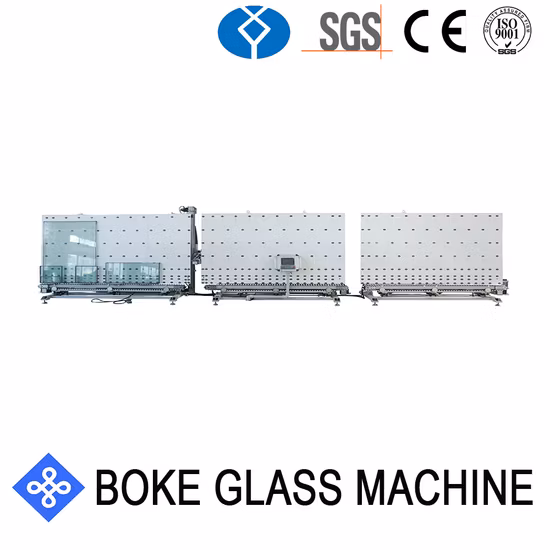

ZDJ-V25 Automatic Double Glass Silicone Sealant Sealing Robot(max. seal size 3600*2500mm)

1. Brief Introduction of ZDJ-V25 Sealing RobotThis sealing robot ZDJ-V25 is the glue applicator for the second sealing of insulating glass (the glue applicator for the first sealing is butyl coating machine). After sealing by the sealing robot, the insulating glass has completed all production procedures (glass original sheet - cleaning and drying - placement of aluminum frame - IG unit plate pressing - sealing)The ZDJ-V25 is three-stage sealing robot. It is suitable for sealing large size IG unit( length 2300mm to 3600mm). The length of three-stage ZDJ-V25 is longer than two-stage ZDJ-V25.2. Main Features of ZDJ-V25 Sealing Robot1.Gluing part adopts special relocation mechanism2.Sealing width is adjustable by inputting parameter3.Sealing depth can be detected automatically4.The sealing speed is controlled by sealing depth and gluing quantity5.Adding glue on the IG unit corner6.All important electric elements, adopt imported famous brand products, such as Servo motor, controller, low-voltage apparatus, sensors, fiber optic photo switches and so on7.Hydraulic glue, through pressure on the hydraulic station8.Adopts Touch screen man-machine interface9.Automatic digital control system by servo motor
Product Parameters

Model	ZDJ-V25
Sealing speed (m/min)	5-35
Sealing depth (mm)	<18
Thickness of IG unit (mm)	12-50
Min. IG unit size (mm)	350*200
Max. IG unit size (mm)	3600*2500
Glue supply pressure (MPa)	<30MPa
Elevation	400mm(Standard height)
Angle of inclination	6°
Air pressure (MPa)	0.6-0.8
Total power (Kw)	10
Max weight of IG unit	800Kg
Outline Dimension (L*W*H)	14000*3500*3200mm

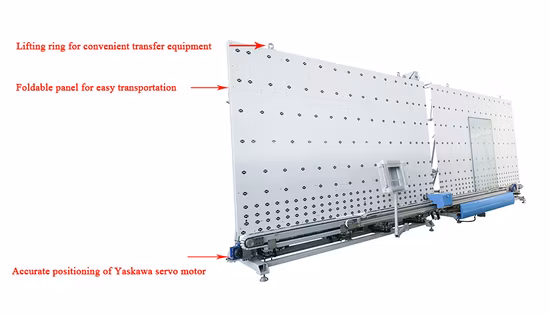

Detailed Photos1) Gluing part adopts special relocation mechanism, ensure the gluing nozzle will touch IG unit closely, but will not break it. And it can adapt to a certain range of displacement error of IG unit. 2) Sealing width is adjustable by inputting parameter, convenient and accurate. Sealing depth can be detected automatically. The sealing speed is controlled by sealing depth and gluing quantity, ensures the sealing quality. Adding glue on the IG unit corner, ensures the sealing quantity on the corner.3) All important electric elements, adopt imported famous brand products, such as Servo motor, controller, low-voltage apparatus, sensors, fiber optic photo switches and so on. Which will make sure the equipment runs well, reliable and long service life.

4) Sucker, reducer, rails, sliders and other key moving parts are adopted from foreign brand, to ensure a smooth transfer of glass, safe and reliable.
5)Hydraulic glue, through pressure on the hydraulic station to meet the quantitative oil supply of the driving oil cylinder, so as to control the white glue for quantitative glue. And ensure the black glue quantitative glue through the mechanical linkage adjustment ratio. It is easy to use, simple and reliable. 6) Automatic sealing robot is equipped with two gluing system. The two sets of glue supply system can make the sealing robot work for a long time, save the time of changing glue, and improve work efficiency.

7) ZDJ-V25 Automatic sealing robot adopts the combination transfer mode of a high quality precision three row roller chain and a unique V block. The roller is connected with the processing surface of the cross beam, low friction force, high effect, stably running of the coated glass, which ensures the good spreading effect. 8) Adopts Touch screen man-machine interface, graphic combination, convenient to understand and easy to operate.
9)The glue machine can seal double glazing or seal three layers of glass.10)This robot adopts high quality Aosong board through the NC machining and wheel combination, beautiful and durable.

Installation InstructionsThis equipment can work alone, or equipped with IG unit production line. The later condition can develop more efficiency.

The insulating glass processing machine includes: Insulating glass production lineSealing robotButyl coating machineDesiccant filling machineAutomatic aluminum spacer bending machineand so on.

CertificationsOur equipment has ISO and CE certificationCompany Profile

Founded in July 2000, the company is a high-tech enterprise integrating production, scientific research, development and sales, specializing in the development and production of ZHENGTONGDA brand high-grade insulating glass processing equipment.The company has 20000 square meters of production plant and modern office area in Jinan High Tech Zone.

Through ISO9001 quality system certification and CE certification, obtained a number of national invention and utility model patents.

In the beginning of 2017, BOKE set up a new trade company called Shandong XY International Trade , which is used for export all the goods.
Our Advantages1) We are one of leading manufacturers in China and have 22 years experience in IG production line field.2) We have supply more than 5000 IG lines until Dec. 30, 2020.3) We have patent rights.4) Under ISO9001:2008we supply good quality machines.5) We pay much attention to after-sale-service, and we have our own service team; we can supply overseas service.6) We have good reputation in China and share more than 20% of domestic market.
FAQ
1.Are your company a trading one or a factory? Factory + trade (integration), 22 years' focusing on insulating glass processing equipment and curtain wall equipment.2.After an order is placed, when to deliver?45 working days for whole production line, 30 working days for single machine. Special requirement please check with sales.3. Guarantee ?12 months guarantee (wearing parts are out of this range). Life long service. BOKE will send engineers for service upon request onsite.4.What about the services and product' quality? Each machine must be carried out 100% quality examination and test before shipment. And all machines meet ISO and CE certification.
