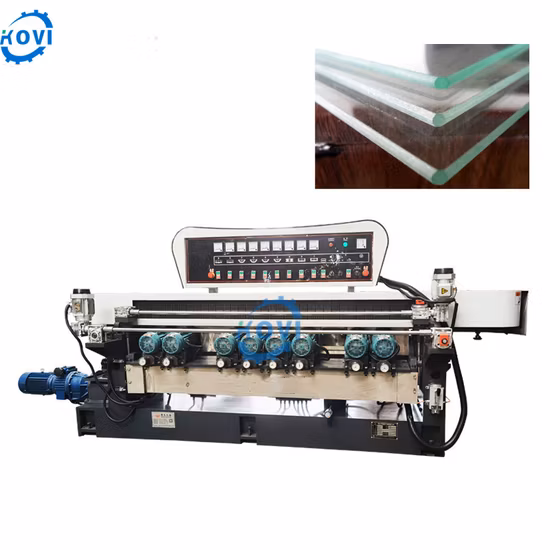

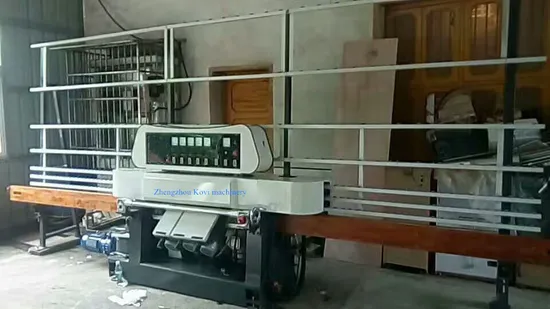

Vertical Straight Edge Automatic Glass Edging Machine Straight Line Glass Beveling Edge Polishing Machine

Basic Info

Model NO.	SFY-3826
After-sales Service	Online or on Site
Power	11.8kw
Cutting Size	3800mmx2600mm
Cutting Thickness	3-19mm
Loading Speed	15-20s/PCS
Cutting Speed	0-160m/Min
Transport Package	Wooden Package
Specification	3900x4700x1440mm
Trademark	SAINT-FECO
Origin	China

Product Description

Glass Machinery CNC Glass Cutting and Load Machine 3800mmx2600mm

1, This machine including auto loading table, auto cutting table, and glass breaking table.Glass loading and cutting at same part, which can save space.

2.Automatic loading with suck discs,automatic cutting all controlled by computer.

3.It adopts CNC control system, the cutting machine has automatic laser positioning&graphic scanning,can cut straight line, and also abnormal shapes.

4.Using glass automatic typesetting, abnormal shapes automatic scanning, eliminating the need for manual CAD measurement and drawing,

5.Adopt high-performance servo motor and ground gear rack to ensure the stability of the machine, with high precision, speed and long service life, etc.

6.The table is made of PVC resin board and table felt to be non-slip. The table can be cleaned by its own machine head to ensure that the table is clean and smooth, and the table is waterproof and oil-proof.

7.The guide wheel adopts the high hardness cutter wheel imported from Germany, and the cutter head is equipped with a protection device to effectively prevent the collision of the cutter

8.Cutting pressure automatic adjusted according to glass thickness

9.Cutter head 360 degree rotating

Model	SFY-3826
Power	11.8KW
Voltage	380V/50HZ
Max. Glass Cutting Size	3800x2600mm
Glass Cutting Thickness	3-19mm
Loading Speed	15-20 s/pcs
Cutting Speed	0-160m/min
Cutting Precision	±0.2mm
Working Mode	Loading, Cutting, Breaking
Machine Dimension	3900x4700x1440mm
Breaking Table Size	2440x3660x1550mm
Weight	5000KGS

Recommended Products

Company Profile

SAINT-FECO is an factory which is professional in the manufacturing the PVC and Aluminum window machines, curtain wall machines and Insulating Glass Machines. We have been in this area for more than 14 years′ with rich experice. Now our company has exported machines to more than 30 countries all over the world.Our aim is caring for your window door and glass business, supplying quality machines to help our clients to expand their market. By the quality machines and good after-sale service, we gain the gain more and more clients′ trust. We are trying our best to supply the best window door and glass factory solutions to our clients, and update our services and technology year by year. We integrate integrity, hard work, and our personal brand of involvement, resulting in one success after another year after year.Now, SAINT-FECO is aiming at caring for your window and glass business on the basis of sincere, speedy, smart, study, and support, this is our core value and key to success. Now our factory covers an area of 40, 000 square meters, we have our own assembling workshop, painting workshop, technical department, QC department, after-sale service department, and so on, we can appoint engineer to install the machines and train your workers, also can slove the problem by online video.For our components, we all use international brand like Schneider, ABB, HIWIN, Yaskawa, AIRTAC and so on, to guarantee perfect performance of the machine, we not only focus on machine quality, but also the machine after-sale service, we have 10 persons′ service team, for any problem of the machine, we can response within 24 hours, also we can send engineers to abroad to install the machine and train the workers, Saint-Feco is looking forward to working with you.

Packaging & Shipping

FAQ

Q: When can we arrange shipment?

The delivery time usually 15 days after getting the deposit, but customized machines will be longer
Q: Our voltage is not 380V/50HZ if we can use the machines.
The voltage can be customized as clients' request
Q: How about the machine warranty time?
The warranty time is one year for all machines, if parts are broken during warranty time, we will give parts for free, but not including wearing parts like milling cutter, saw blade and so on.
Q: How should I install the machines?
We will appoint an engineer to install the machines, also train your workers.

Q: If the machine has a problem in my place, how could I do it?

1. Usually, a small problem with online video is ok.
2. We can also send our engineers to repair your machines.
